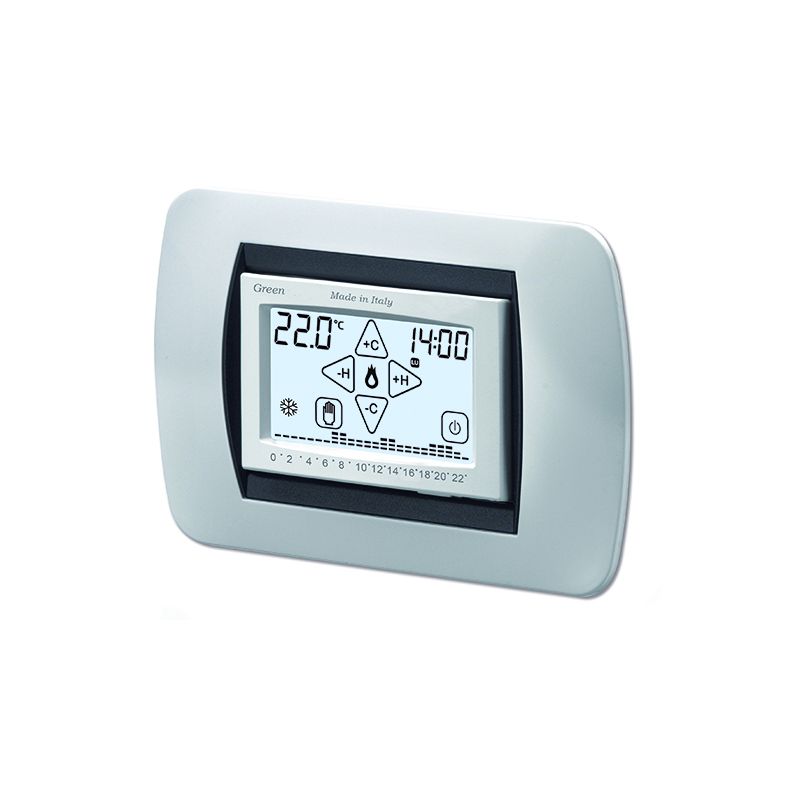

GREEN Touch screen recessed programmable thermostat
Digital touch screen chronothermostat with backlit display. Easy to install in box 3 modules, the battery version is interchangeable with the thermostats DAY and T-TOUCH. It has double operation modes (summer and winter)in order… See more...
Digital touch screen chronothermostat with backlit display. Easy to install in box 3 modules, the battery version is interchangeable with the thermostats DAY and T-TOUCH. It has double operation modes (summer and winter)in order to command conditioning and heating systems. Simply tap on the surface of the screen to activate the backlight and bring up the control icons that allow you to vary the programming and activate the settings lock function. GREEN has an "antifreeze" program, which preserves the installation even with the chronothermostat turned off at temperatures below 5 in C. Compatible with the most widespread plates of the civil series.
Standard Specifications
Power supply: 2 size AAA alkaline 1,5V batteries
Battery life: About 18 months (stand-by)
Batteries load control: 2 warning levels
Setting range: every 30 minutes
Themperature range: Winter +5/+30 °C Summer +15/+35 °C
Temperature step: Winter ±0,2 °C Summer ±5 °C
Differential: Adjustable from ±0,2 to ±2 °C
Accuracy read: ±0,2 °C
Max contact load: 230 Vac – 5A (Resistive load)
IP protection: IP20
Installation: Recessed – 3 mouldings
Options
Green 230 V : Power supply 230 Vac - 50 Hz
To view the video, you need to accept our Cookie Policy. If the player doesn't appear, click the link below.
Compatibility of civil series plates
Holder Plates Geca
ABB
SERIE | A | B | C | D | E |
---|---|---|---|---|---|
Chiara | X | ||||
Elos | X | ||||
Mylos | X |
AVE
SERIE | A | B | C | D | E |
---|---|---|---|---|---|
Banquise | X | ||||
Noir | X | ||||
Sistema 44 | X |
Biticino
SERIE | A | B | C | D | E |
---|---|---|---|---|---|
Living International | X | ||||
LivingLight | X | ||||
LivingLight Tech | X | X | |||
LivingLight Air | X | X | |||
Matrix | X | ||||
Luna | X | ||||
Axolute | X | ||||
NOW | X |
Gewiss
SERIE | A | B | C (Optional) | D | E |
---|---|---|---|---|---|
Playbus | X | ||||
Playbus young | X | ||||
Chorus ONE | X | ||||
Chorus Lux | X | ||||
Chorus Art | X | ||||
Chorus Flat | X | ||||
Chorus Geo | X |
Legrand
SERIE | A | B | C | D | E |
---|---|---|---|---|---|
Vela | X |
Simon urmet
SERIE | A | B | C | D | E/U (Optional) |
---|---|---|---|---|---|
Nea Flexa | X | ||||
Nea Kadra | X | ||||
Nea Expi' | X |
Vimar
SERIE | A | B | C | D | E |
---|---|---|---|---|---|
Idea | X | ||||
Idea Rondò | X | ||||
Eikon | X | ||||
Eikon EVO | X | ||||
Plana | X | ||||
Arkè | X |
