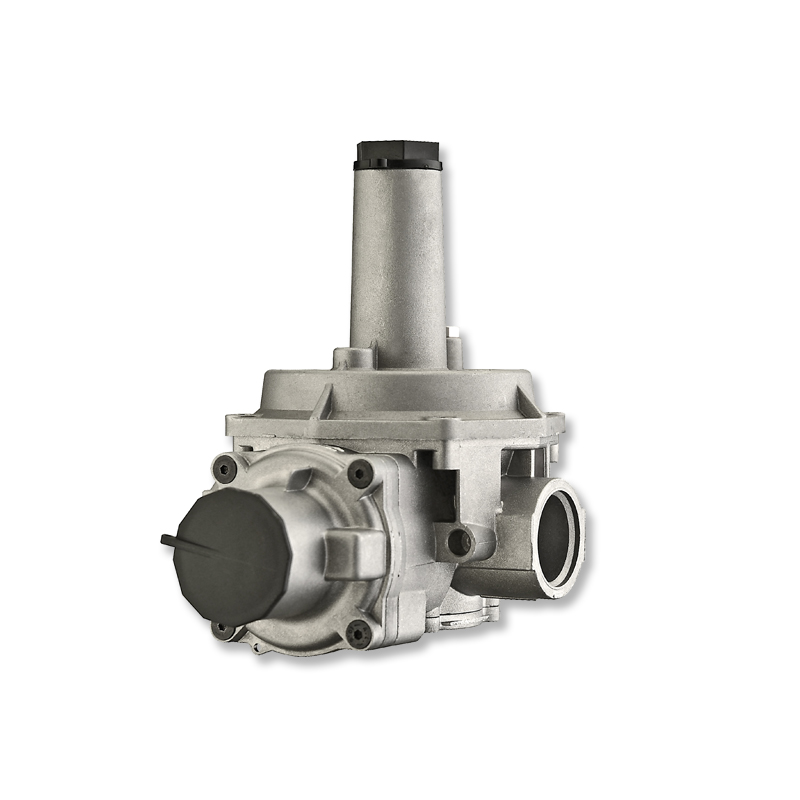

    Gas Regulator with Slam Shut valve

    The gas pressure regulators are spring-loaded gas regulators with balanced plug, diaphragm command and contrast action by spring, suitable for low and medium pressure. Regulator and shut-off device are supplied with internal sens… See more...
    Request informations
    Standard Specifications
    Pressure inlet max – 5 bar / 500 mbar
    Setting outlet 5 – 300 mbar – Standard spring supplied 10 – 27 mbar – Other spring on request
    UPSO 10 - 60 mbar - Standar spring supplied 5 - 14 mbar
    OPSO 150 - 700 mbar - Standar spring supplied 150 - 250 mbar
    Inlet - Outlet Connection Thread gas 1/2" - 3/4" - 1" - 1 - 1 1⁄4” 1 1/2 " - 2"
    Test point Inlet / outlet on request – Test point 1/8” NPT
    Working Temperature - 20 °C – + 60 °C
    Use Not aggressive gases of three families – Natural Gas – LPG – Town Gas
    Complete Body Die – Cast Aluminium Gd – AlSi12Cu - EN AB 46100
    Diaphragms NBR 60Sh – DvGW EN 549
    Plastic components White POM / Pa 66 + 25% Gf
    Approval UNI EN 88-1:2008 / PED
    Options
    Color: White Range: 5 - 14 mbar
    Color: Yellow Range: 6 - 22 mbar
    Color: Neutral Range: 10 - 27 mbar
    Color: Red Range: 28 - 70 mbar
    Color: Black Range: 60 - 130 mbar
    Color: Blue Range: 120 - 300 mbar
    If you want test point in and out pls add code TPIO at the end of the code
    Others configuration on request
