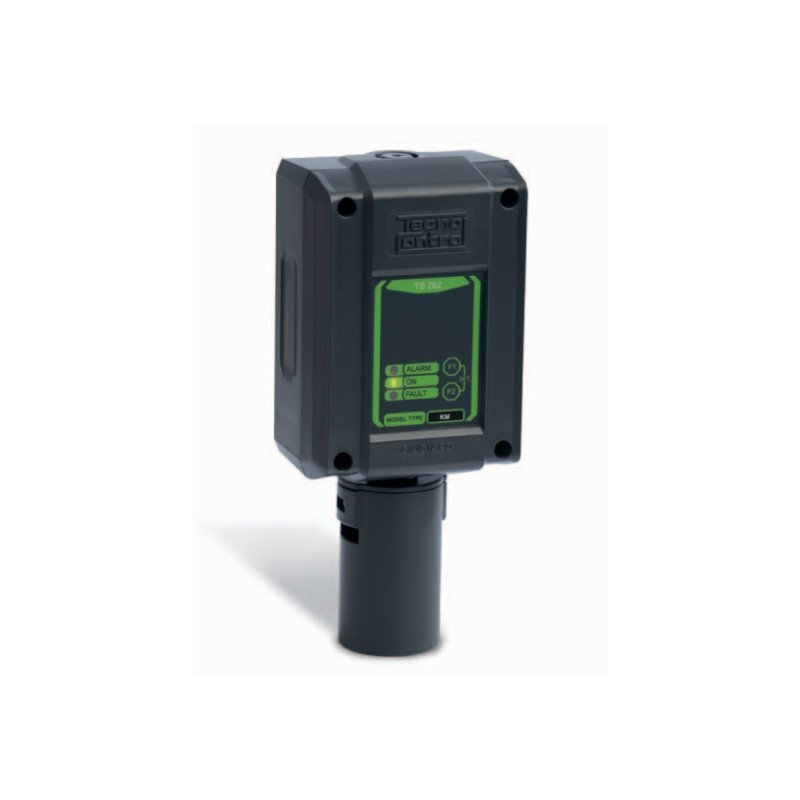

SE136IC2 Industrial gas detector, with IR sensor
Carbon dioxide (CO2) detector with infrared sensor, designed for continuous monitoring of gas concentration in civil and industrial environments.
The device consists of an enclosure housing the electronic circuit and the connect… See more...
Carbon dioxide (CO2) detector with infrared sensor, designed for continuous monitoring of gas concentration in civil and industrial environments.
The device consists of an enclosure housing the electronic circuit and the connection terminals.
The sensor, installed inside the enclosure, is in direct contact with the external environment through a filtering grille.
The detector is equipped with a 4–20 mA analog output and alarm relays.
Standard Specifications
Power Supply: 12-24Vcc (-10/+15%)
Power consumption: 2,5W
Output: linear 4÷20 mA, 4 relè 24V/1A SPST
IP Rating: IP44
Wall Mount
Dimensions:160x80x67mm / 450g
