Gas Valve Fast Opening/Closing up to DN100
Automatic gas solenoid valves are used for safety and control of gas for shut-off in gas feed pipes. Suitable for various gasses, including Natural gas, Propane and LPG Gas solenoid valve normally closed solenoid that open automa… See more...
Automatic gas solenoid valves are used for safety and control of gas for shut-off in gas feed pipes.
Suitable for various gasses, including Natural gas, Propane and LPG Gas solenoid valve normally closed solenoid that open automatically when the coil is powered and close automatically when there is no tension.
Standard Specifications
Max pressure: 360 mbar
Opening time : ≤ 1 sec .
Max operations : 20 per minute
Power supply: 230Vac / 110Vac ( -15 % + 10 % ) - 50/60Hz
Occupation: Non-aggressive gases (methane , propane , LPG .... )
Temperature Operating : -20 ° C + 60 ° C
Connections: flanged PN16
Electrical protection : IP65
Group: 2
Conforms : Directives 2014/68/EU (PED)
Conforms: Directives 2009/142/CE (GAS) EN161
To view the video, you need to accept our Cookie Policy. If the player doesn't appear, click the link below.

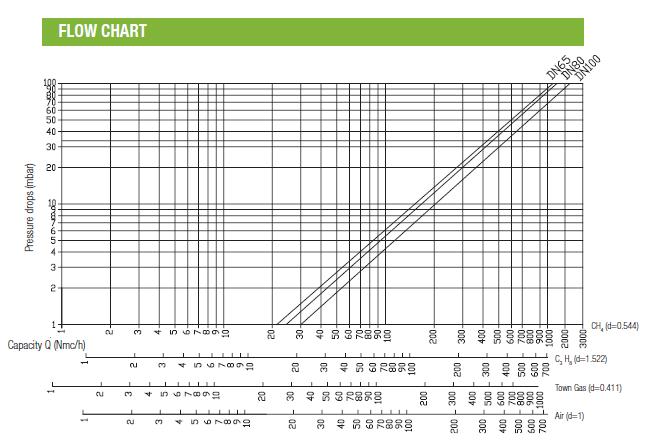

Automatic gas Valve Pressure Drop table
