    2316

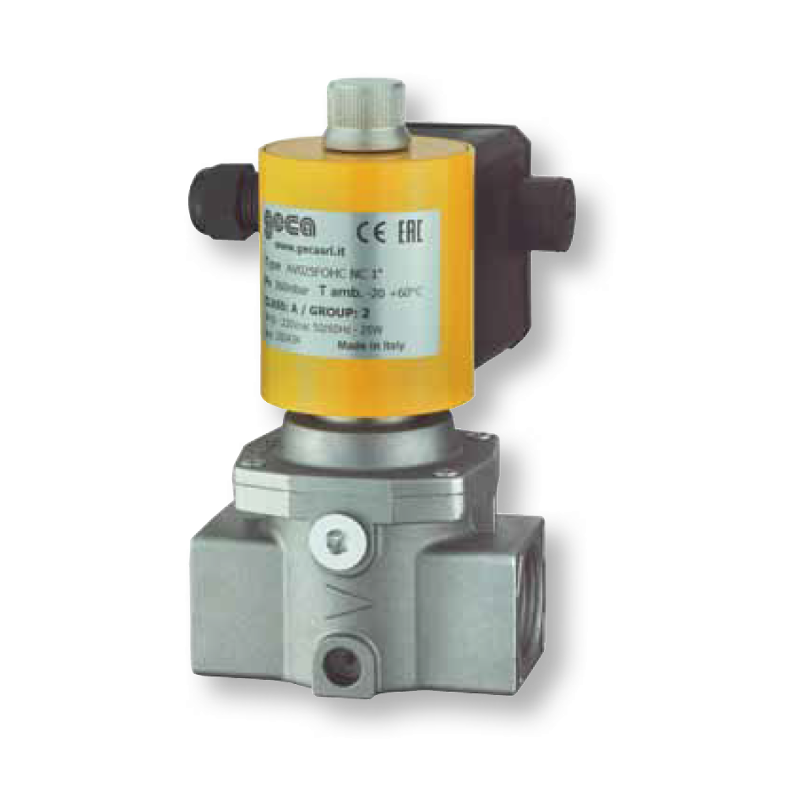

    Gas Valve Fast Opening/Closing up to 1” - High Capacity

    Automatic gas solenoid valves are used for safety and control of gas for shut-off in gas feed pipes. Suitable for various gasses, including Natural gas, Propane and LPG Gas solenoid valve normally closed solenoid that open automa… See more...
    Standard Specifications
    Pmax 360 mbar
    Opening time <1 second
    Closing time <1 second
    Max operations 20 per minute
    Incorporated AISI 303 steel mesh filter
    Use Non – aggressive gases – Family 1 – 2 – 3 and air
    Test point Screw ¼" NPT
    Working Temperature - 20 °C – 60 °C
    Power 15 VA
    Coils to class F copper wire class H
    Protection degree IP65
    Approval EN161
    Options
    Supply voltage: 230V (-15%+10%) 50-60Hz - 110V (-15%+10%) 50-60Hz - 24Vdc (-15%+10%) 50-60Hz
    Inlet connection Thread gas ½" ¾" and 1" - ISO 228
    Outlet Thread gas ½" ¾" and 1" - ISO 228
    CPI On request
    To view the video, you need to accept our Cookie Policy. If the player doesn't appear, click the link below.

    Automatic gas Valve Pressure Drop table
