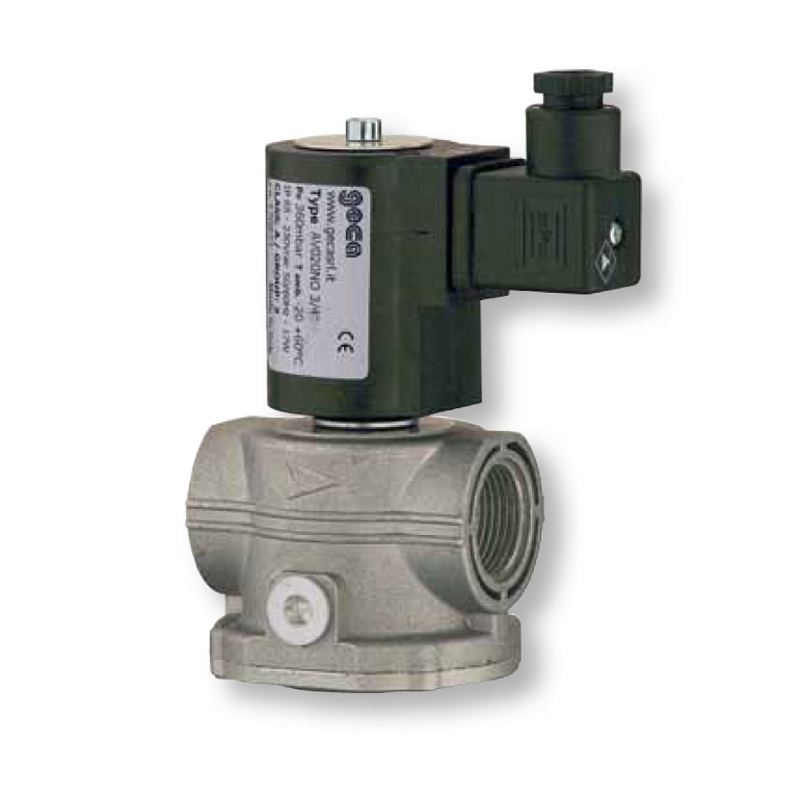

Gas valves - Normally open - Vent valves
Normally open solenoid valve is an automatic pressure relief valve for gas burners and gas appliances. The normally open gas solenoid valve is a safety device which quickly intercepts gas flow when the pressure it is monitoring r… See more...
Normally open solenoid valve is an automatic pressure relief valve for gas burners and gas appliances. The normally open gas solenoid valve is a safety device which quickly intercepts gas flow when the pressure it is monitoring reaches a pre-set limit due to any anomaly in the system
Standard Specifications
Opening time <1 second
Closing time <1 second
Max number of operations 20 per minute
Power 15 VA
Coils to class F copper wire class H
Use Non – aggressive gases – Family 1 – 2 – 3 and air
Test point 3 connections
Screw ¼” NPT
Working Temperature - 20 °C – 60 °C
Protection degree IP65
Approval PED
Options
Pmax 360 mbar - 6 bar
Supply voltage 230V (-15%+10%) 50-60Hz, 110V (-15%+10%) 50-60Hz,24Vdc (-15%+10%) 50-60Hz
Inlet connection - outlet DN25 Thread gas ½”- ¾” - 1” - ISO 228 - Sliding Aluminium flange PN10
Incorporated AISI 303 steel mesh filter on request
To view the video, you need to accept our Cookie Policy. If the player doesn't appear, click the link below.
Automatic gas Valve Pressure Drop table
